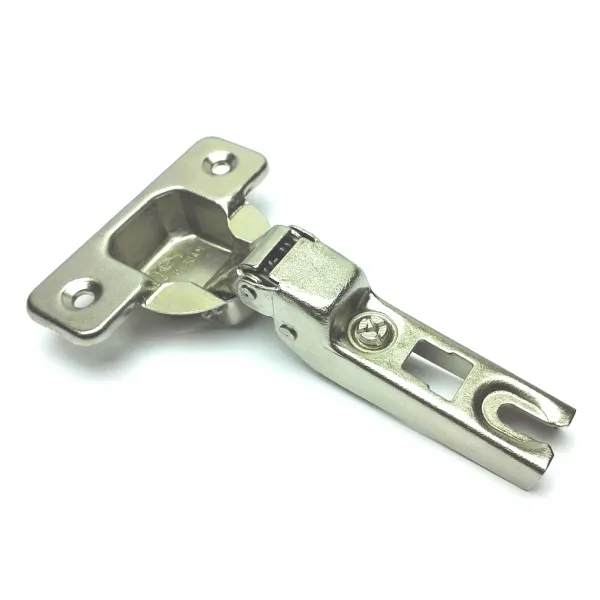

Hinge 35°, half overlay, rejecting 8mm
Item code: L-FMSP1508
Item code copied!
Hinge 35°, half overlay, rejecting 8mm
Item code: L-FMSP1508
Item code copied!
€1.09
€1.66
pcs
(with VAT)
Item in stock.
Delivery Time: 1-3 days
SLIDE-ON series hinge with OneTouch push-to-open function
Sold separately:
- Mounting plate for hinge L-FC2010
- Mounting plate with Euro screws L-FC21600
- Push-to-open mechanism T-699 with mounting plate

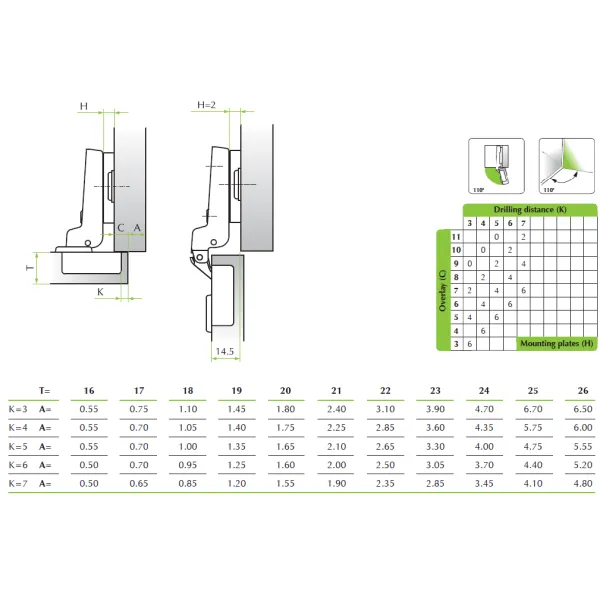

Data sheet
| Comfort functions opening/closing | Push to open |
|---|---|
| Type of facade | Half |
| Door thickness, mm | 16-26 |
| Door material | Board |
| Opening angle, ° | 110 |
| Cup depth, mm | 11.3 |
| Cup width, mm | 35 |
| Series | MS Slide-On |
| Screw drilling dimensions, mm | 45/9.5 |
| Colour | nickel |
| Installation | Slide-on/A |
