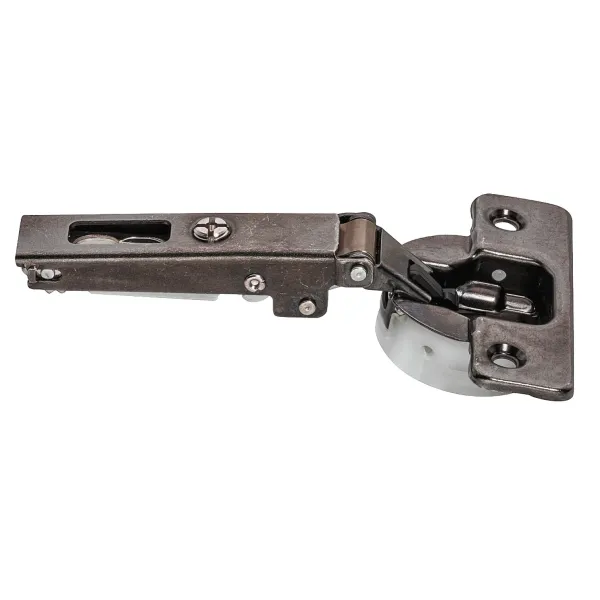

Concealed hinge, Häfele Duomatic Plus Titanium 110°, full overlay mounting
Item code: L-HS17705T
Item code copied!
Concealed hinge, Häfele Duomatic Plus Titanium 110°, full overlay mounting
Item code: L-HS17705T
Item code copied!
€4.39
€7.08
pcs
(with VAT)
Item in stock.
Delivery Time: 1-3 days
DUOMATIC TITANIUM PLUS series hinge with soft-close function
Technical specifications:
- The damper is activated at an angle of 30° or 10°
Sold separately:
- CLIP straight hinge mounting plate TITANIUM L-HPT00
Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | Soft close, Self close |
| Type of facade | External |
| Door thickness, mm | 16-26 |
| Door material | Board |
| Opening angle, ° | 110 |
| Cup depth, mm | 13.5 |
| Cup width, mm | 35 |
| Material | steel |
| Series | Metalla 510 |
| Screw drilling dimensions, mm | 48/6 |
| Colour | anthracite |
| Vendor item no. | 329.17.790 |
| Installation | CLIP/SM quick fixing |
