Concealed Cup Hinge Metalla 310 Clip 155° full overlay, soft-close, 48/6, nickel
Item code: L-HS31026
Item code copied!
Concealed Cup Hinge Metalla 310 Clip 155° full overlay, soft-close, 48/6, nickel
Item code: L-HS31026
Item code copied!
€2.73
€3.41
pcs
(with VAT)
Item in stock.
Delivery Time: 1-3 days
Full-overlay hinge with soft close for cabinets with internal pull outs or extending trays
Technical specifications:
- Side adjustment: ±2.5 mm
- Height adjustment: ±2 mm
- Depth adjustment: ±2 mm

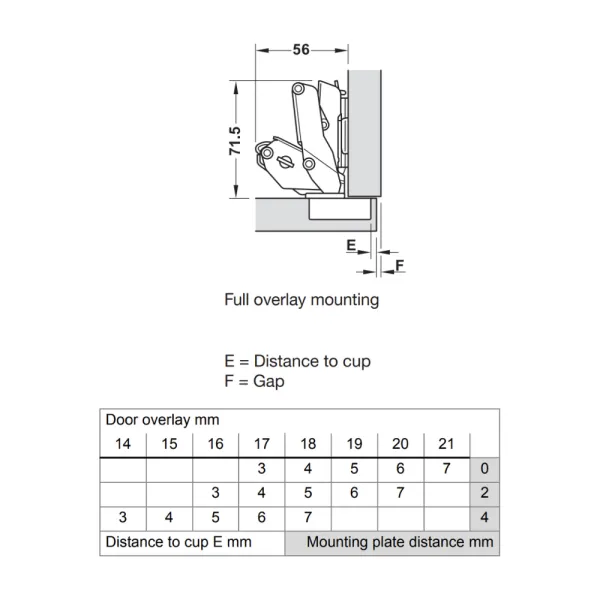

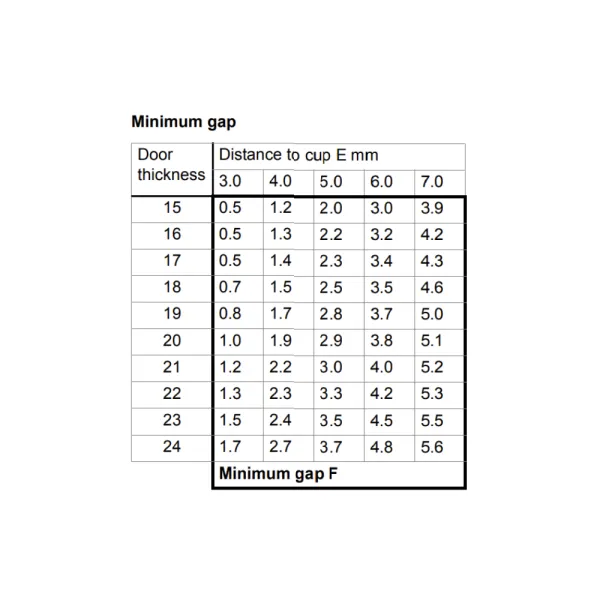

Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | Soft close, Self close |
| Type of facade | External |
| Door thickness, mm | 15-24 |
| Door material | Board |
| Opening angle, ° | 155 |
| Cup depth, mm | 12 |
| Cup width, mm | 35 |
| Material | steel |
| Series | Metalla 310 |
| Screw drilling dimensions, mm | 48/6 |
| Colour | nickel |
| Vendor item no. | 311.63.731 |
| Installation | CLIP/SM quick fixing |
