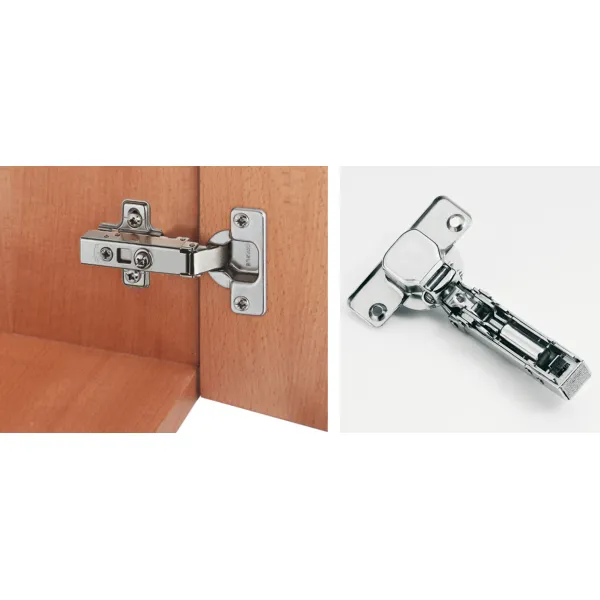

Concealed hinge, Häfele Metalla SM Combi 110°, full overlay mounting
Item code: L-HS60515
Item code copied!
Concealed hinge, Häfele Metalla SM Combi 110°, full overlay mounting
Item code: L-HS60515
Item code copied!
€3.03
€3.99
pcs
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
METALLA CLIP COMBI series hinge with soft-close function
Technical specification:
- Quick mounting
Sold separately:
- Mounting plate for METALLA CLIP COMBI hinge L-HPS00
- Mounting plate for METALLA CLIP COMBI hinge with adjustable eccentric screw L-HPS10
Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | Soft close, Self close |
| Type of facade | External |
| Door thickness, mm | 14-22 |
| Door material | Board |
| Opening angle, ° | 110 |
| Cup depth, mm | 12 |
| Cup width, mm | 35 |
| Material | steel |
| Series | Metalla 300 |

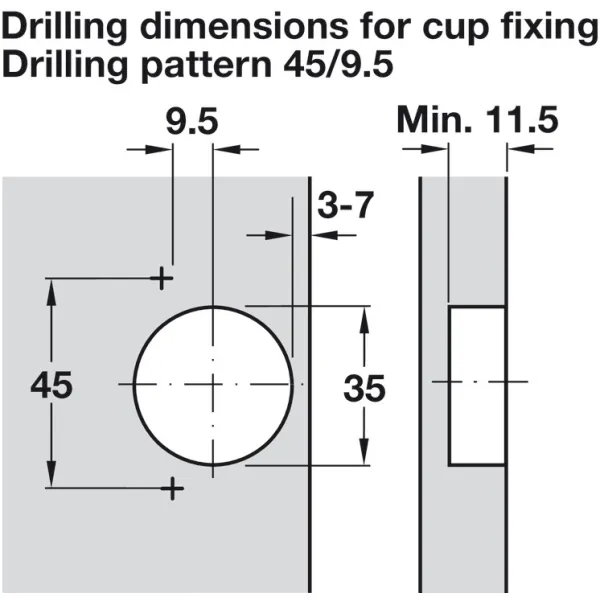

| Screw drilling dimensions, mm | 52/5.5 |
| Colour | nickel |
| Vendor item no. | 311.60.515 |
| Installation | CLIP/SM quick fixing |
