Rail end support, For Häfele Dresscode wardrobe rail, straight-edged
Item code: X80317720
Item code copied!
Rail end support, For Häfele Dresscode wardrobe rail, straight-edged
Item code: X80317720
Item code copied!
€7.21
€10.02
set
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days

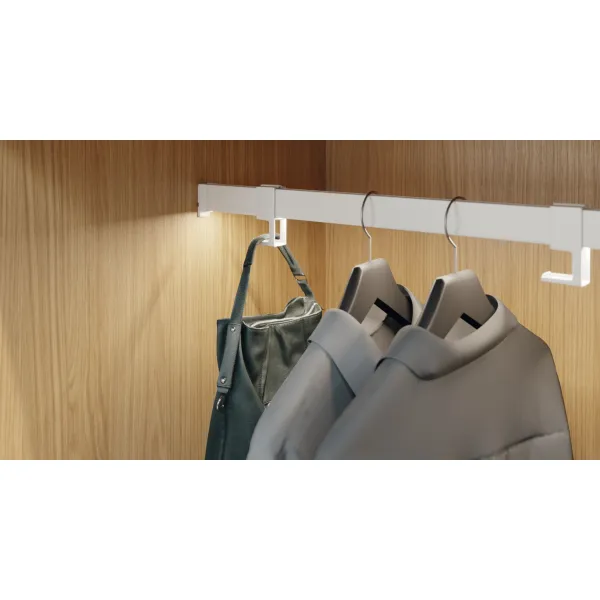

Rail end support, designed for mounting rectangular tube in furniture panels or DressCode aluminium profile system
Technical specifications:
- Simple installation removal or position adjustment without tools
Mounting method:

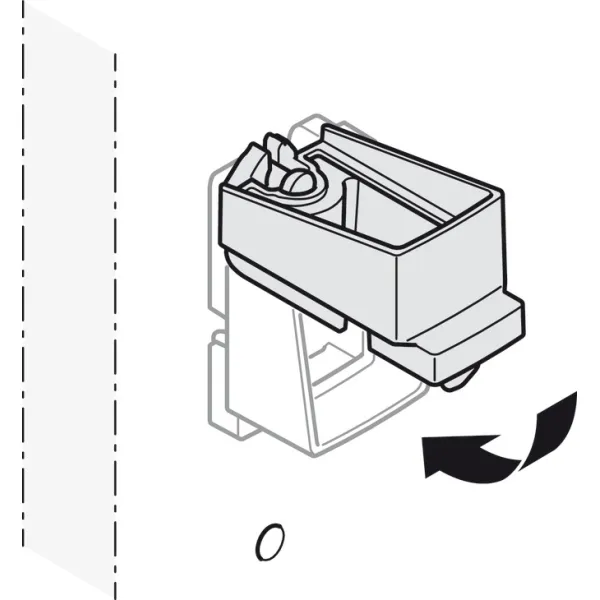

- Holders are inserted into Ø5 mm drill holes and folded tube placed from above
- Required tube length = internal module width (mm) - 26 mm
DressCode profile system and wardrobe accessories mounting (video)
For installation in the DressCode aluminium profile system rectangular crosspieces (2 pcs) are additionally ordered
Set includes:
- Foldable brackets – 2 pcs

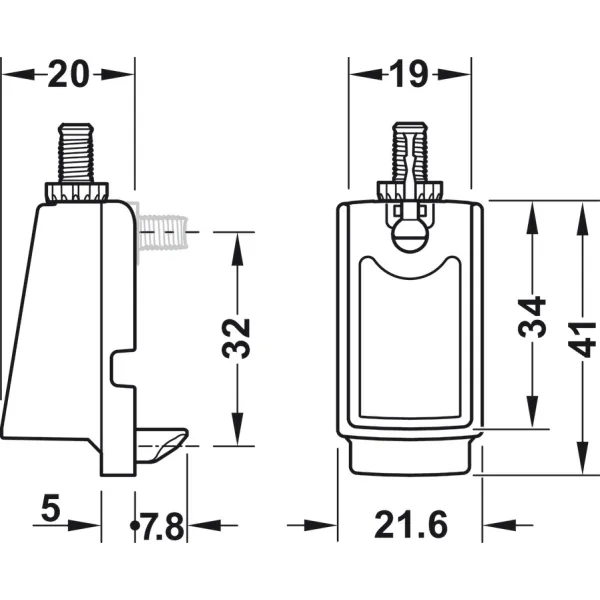

Data sheet
| Brand | Häfele |
|---|---|
| Material | zinc alloy |
| Series | DressCode |
| Diameter, mm | 34x18 |
| Colour | white |
| Vendor item no. | 803.17.720 |
