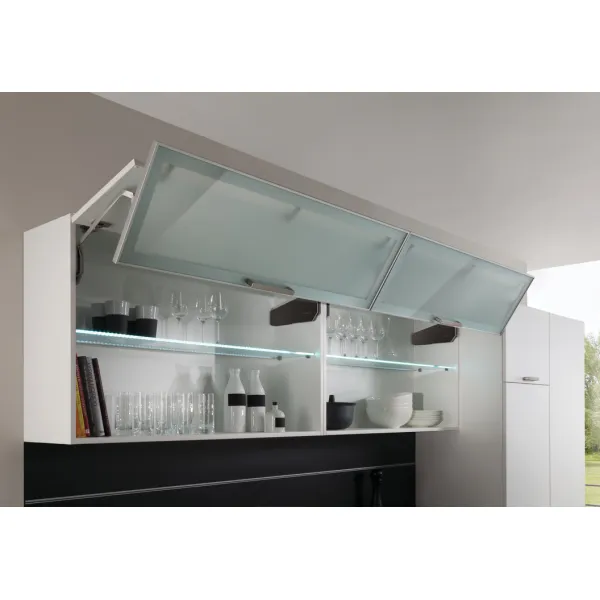

Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Item code: M-HH/F-FOLD/800/H4
Item code copied!
Double flap lift-up fitting, Free fold for flaps made from wood or with aluminium frame
Item code: M-HH/F-FOLD/800/H4
Item code copied!
€78.65
€124.84
set
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
Folding door mechanism with integrated soft-close system
Technical specifications:
- Recommended for doors 480–1040 mm high and weighing 2.2–20.9 kg
- Doors can be held open at any height
- Adjustable lifting force
- Intermediate hinges prevent finger injuries
Intermediate hinges M-HH/L senso must be ordered separately
Intermediate hinge for FOLD mechanism
Available additionally: adapters M-HH/F-FOLD/A for doors with narrow 20 mm aluminium frame
Set includes:
- Mechanism – 2 pcs (left + right)
- Mounting components for wooden or wide aluminium frame doors – 2 pcs
- Covers – 2 pcs (left + right)
Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | With soft closing |
| Door material | Board |
| Facade weight, kg | 4.9-9.8 |
| Load capacity, kg | 4.9-9.8 |
| Supplied with | 1 double flap lift-up fitting set (1 piece each left/right, including front fixing brackets for wooden flaps or flaps with wide aluminium frame, installation instructions and paper drilling template), 1 set of cover caps, grey (1 piece each le |
| Material | plastic |
| Module height, mm | 770-840 |
| External module height, mm | 770-840 |
| Colour | grey |
| Vendor item no. | 372.37.563 |
