Stay flap fitting, Häfele Free flap 3.15, set
Item code: M-HH/FREE/D
Item code copied!
Stay flap fitting, Häfele Free flap 3.15, set
Item code: M-HH/FREE/D
Item code copied!
€41.84
€65.38
set
(with VAT)
Place the order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days

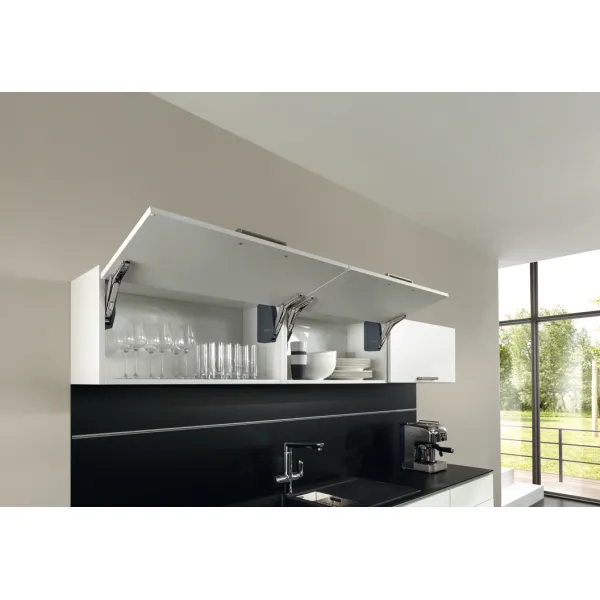

Horizontal door lift-up mechanism
Technical specifications:
- Recommended for doors 350–650 mm high and weighing 2.6–27.3 kg
- Recommended door thickness 16–28 mm

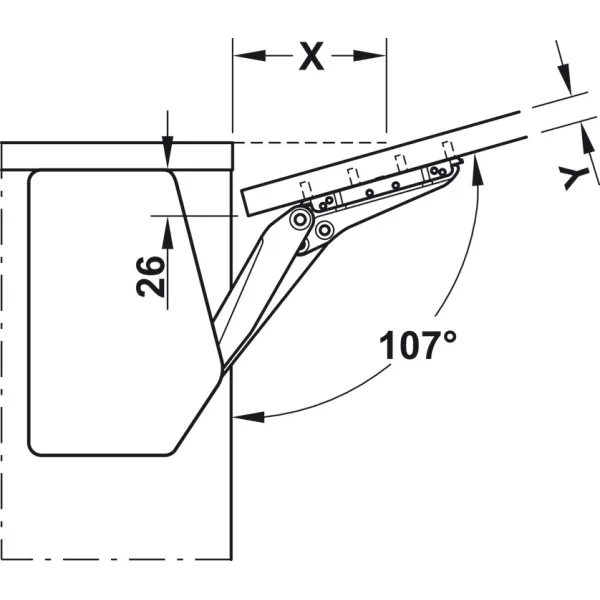

- Opening angle 90°/107° (adjustable on the mechanism)
- Integrated soft-close system
- Doors can be held open at any height
- Convenient door position and lifting force adjustment
- Suitable for cabinets with cornice profile doors
Adapters M-HH/Afree for doors with narrow 20 mm aluminium frame sold separately
Optional: mechanisms with white or anthracite cover caps, push-openers for handleless doors
Set includes:
- Mechanism – 2 pcs (left + right)
- Mechanism covers – 2 pcs
- Mounting components for wooden or wide aluminium frame doors – 2 pcs
Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | With soft closing |
| Door material | Board |
| Facade weight, kg | 2.6-11 |
| Load capacity, kg | 2.6-11 |
| Supplied with | 1 stay flap fitting set (1 piece each left/right, 2 front fixing brackets for wooden flaps or flaps with wide aluminium frame from frame width 45 mm, installation instructions and paper drilling jig), 1 set of cover caps grey, white or anthrac |
| Material | steel |
| Module height, mm | 350-650 |
| External module height, mm | 350-650 |
| Colour | grey |
| Vendor item no. | 372.91.330 |
