Stay flap fitting, Häfele Free flap H 1.5, all-plastic, 1-piece set
Item code: M-HH/FREE-HN/P/A/L
Item code copied!
Stay flap fitting, Häfele Free flap H 1.5, all-plastic, 1-piece set
Item code: M-HH/FREE-HN/P/A/L
Item code copied!
€11.52
€14.77
pcs
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
Lift-up mechanism with plastic lever arm for small-size fronts
Technical specifications:
- Version: plastic

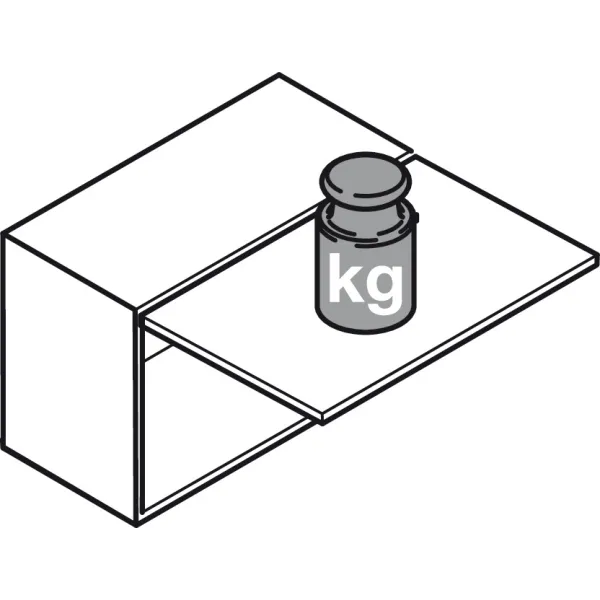

- Recommended for doors 275–600 mm high and weighing 1–10 kg
- For doors wider than 600 mm, 2 mechanisms (L+R) are recommended
- Opening angle 75°/90°/110° (depending on mounting method)
- Simple mounting

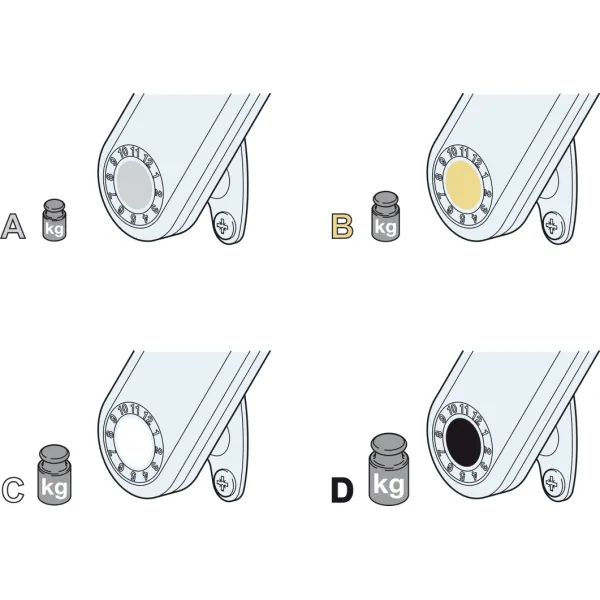

Tables indicate lifting capacity per single mechanism
For doors wider than 600 mm, use 2 lighter mechanisms, each supporting half the door weight

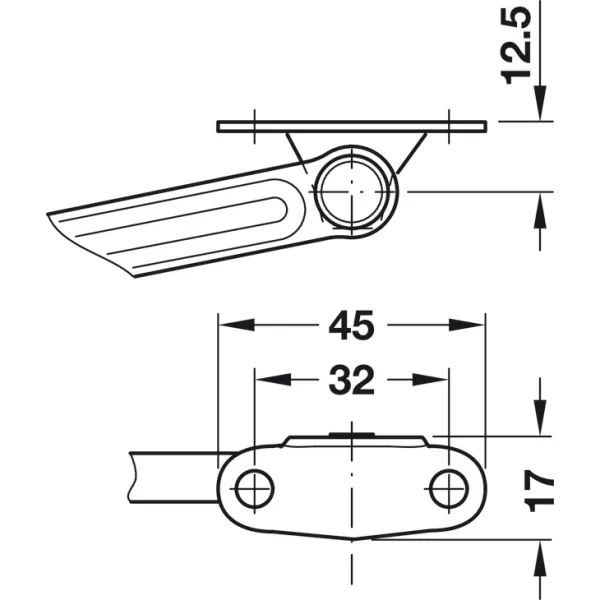

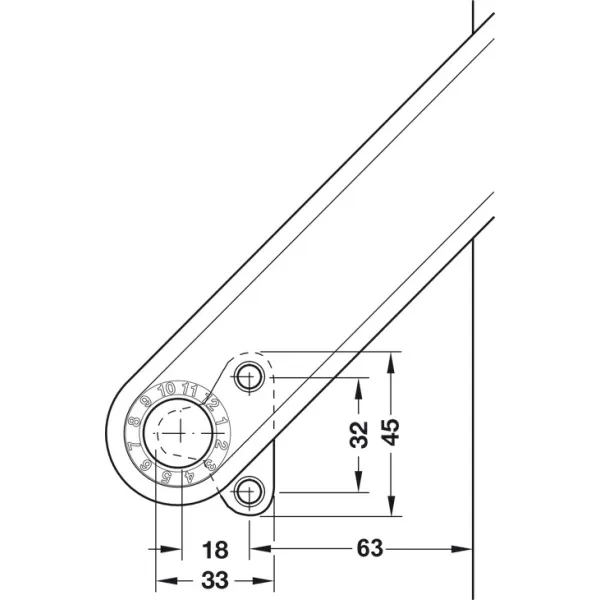

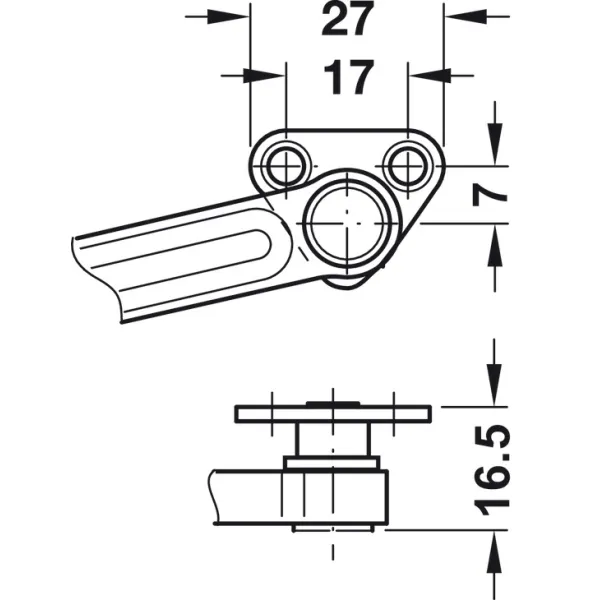

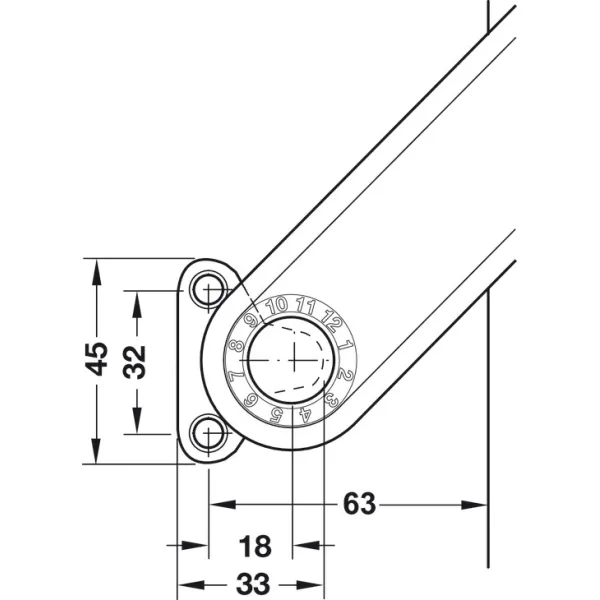

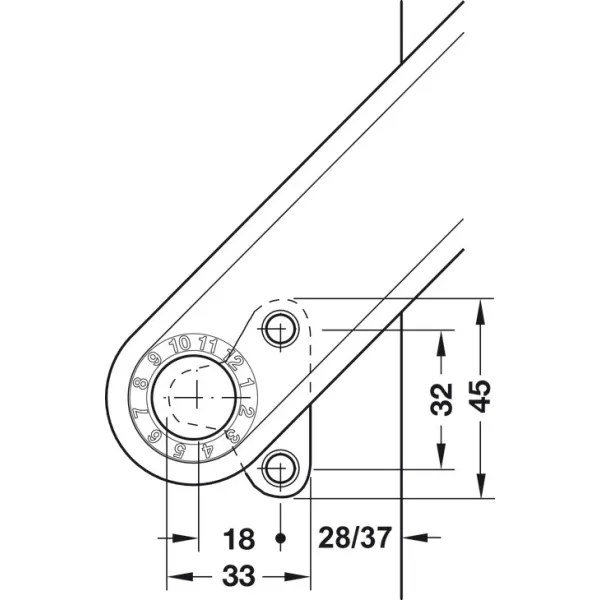

IMPORTANT: Mounting diagrams vary depending on the door opening angle and version
Mounting diagrams available at the link above:
- p. 5.233 – doors with handles
- p. 5.234 – handleless doors with Push function, lifted manually and held open at any height
- p. 5.235 – handleless doors with Push function, fully automatic opening
PUSH door opening can be combined with suitable hinges and push-openers
Hinges, mounting plates, push-openers and other accessories sold separatelyData sheet
| Brand | Häfele |
|---|---|

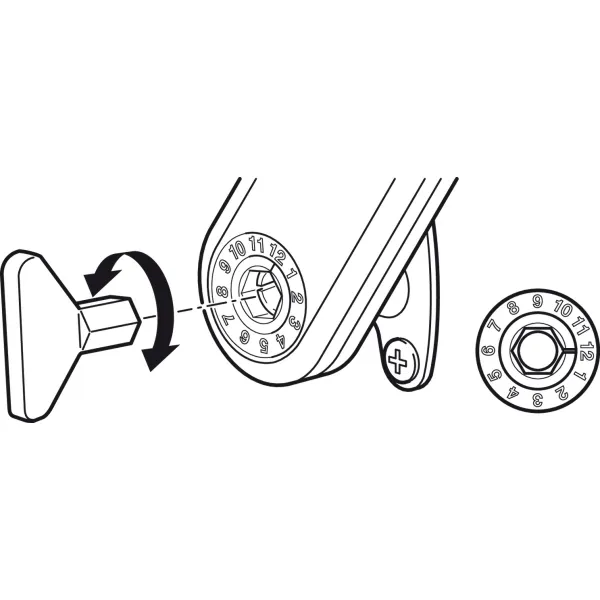

| Supplied with | 1 lid stay, 1 mounting bracket for cabinet, 1 screw-on bracket for flap, 1 hex key, SW10, plastic, 1 set of installation instructions |
| Material | plastic |
| Side | left |
| Colour | grey |
| Vendor item no. | 372.39.601 |
Product photos are intended for illustrative purposes only and are examples. The video links included in the product description are for informational purposes only; therefore, the information presented in them may differ from the actual product. Original product colors, inscriptions, parameters, measurements, sizes, functions, and/or other product features may appear differently in reality due to their visual characteristics, so please rely on the product specifications provided in the product description.
