Three quarter circle carousel fitting, For corner cabinet, with 90° doors

Name: Three quarter circle carousel fitting, For corner cabinet, with 90° doors
Brand: Häfele
SKU: V-HP2/740A
Price: 183.88 EUR
Availability: PreOrder

Item code: V-HP2/740A

€183.88 €258.99

set (with VAT)

Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.

Delivery Time: 7-15 days

Three quarter circle carousel fitting Technical specifications:Doors attach to the carousel postWhen rotating the carousel the doors slide inward and rotate with the carouselOne sh...

Min. 1

set

favorite_border

Product variations

Height, mm

Colour

Description
Product Details

Description

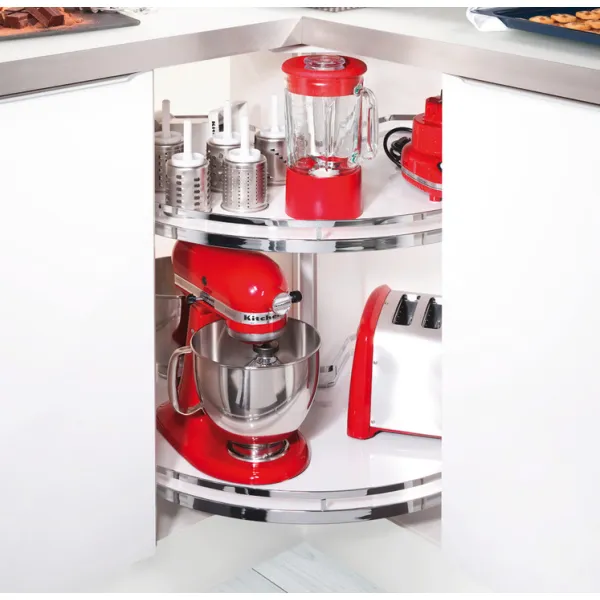

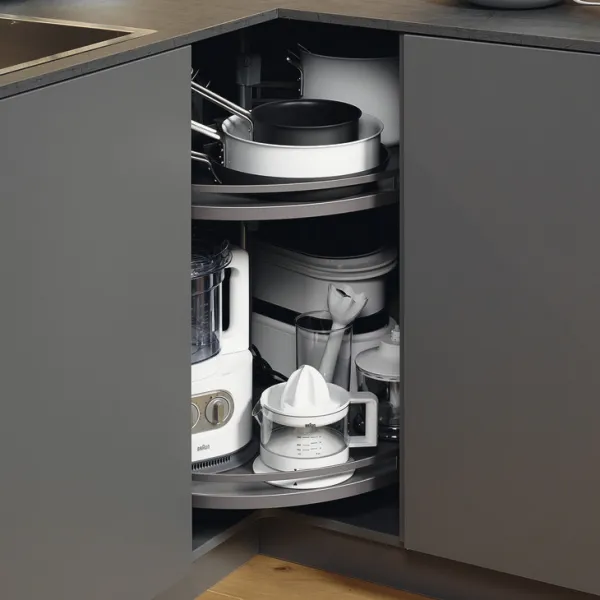

Three quarter circle carousel fitting

Technical specifications:

Doors attach to the carousel post
When rotating the carousel the doors slide inward and rotate with the carousel
One shelf load capacity up to 20 kg
Designed for doors with width 250 or 350 mm
Quick and easy shelf installation
Easy adjustment of shelf mounting height
Rotation force adjustment

*Note: the dimension table indicates external cabinet module width and depth

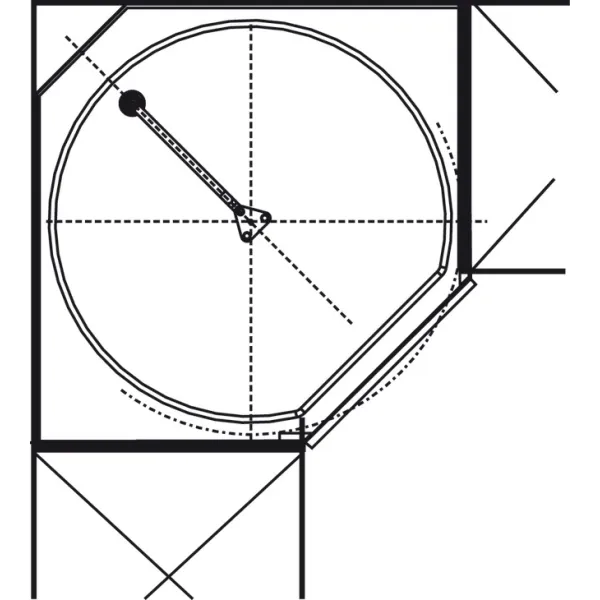

Mechanism mounting diagram (PDF)

Sold separately:

2 or 3 shelves V-HP3/4
1 or 2 shelf brackets (no additional bracket required for the bottom shelf)

Set includes:

Upper bracket
Post
Bracket for bottom shelf
Fixings

Product Details

Data sheet

Brand	Häfele
Height, mm	740-940
Supplied with	1 upper bearing bracket, 1 basic fitting unit, 1 carousel shelf support, 1 set of fixing material, 1 set of installation instructions
Material	steel
External module width, mm	800/900
External module depth, mm	546-560
Colour	anthracite
Vendor item no.	541.46.401
