Concealed Hinge Metalla 310 Clip 110° for aluminium frame,half overlay, soft-close, 28/6.9, nickel
Item code: L-HS31061
Item code copied!
Concealed Hinge Metalla 310 Clip 110° for aluminium frame,half overlay, soft-close, 28/6.9, nickel
Item code: L-HS31061
Item code copied!
€1.52
€2.08
pcs
(with VAT)
Item in stock.
Delivery Time: 1-3 days
Metalla 310 series half overlay/twin mounting hinge with soft closing mechanism and automatic closing spring for narrow aluminum frame doors.

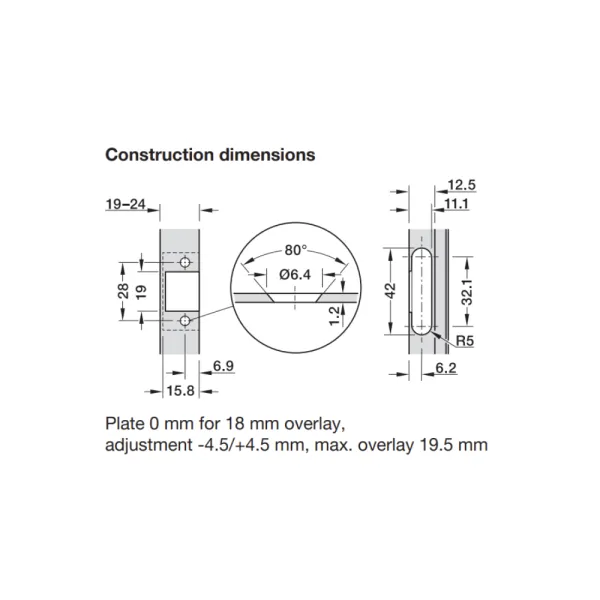

Technical specifications:
- Aluminum profile width: 19-24mm
- Adjustment facility:
- Side adjustment: ±3 mm
- Height adjustment: ±2 mm (via mounting plate)
- Depth adjustment: ±2 mm
Installation:
- CLIP / SM quick fixing system - hinge arm is attached to mounting plate without tools.
- Hinge cup is inserted to drilled hole and screw fixed (screws are sold separately).
Sold separately:
Mounting plate Metalla 310.
Mounting plate Metalla 310.
Available additionally:
Cover cap for hinge arm Metalla 310/110.
Cover cap for hinge arm Metalla 310/110.
Data sheet
| Brand | Häfele |
|---|---|
| Comfort functions opening/closing | Soft close, Self close |
| Type of facade | Half |
| Door material | Aluminum profile |
| Opening angle, ° | 110 |
| Material | zinc alloy/steel |
| Series | Metalla 310 |
| Screw drilling dimensions, mm | 28/6.9 |
| Colour | nickel |
| Vendor item no. | 311.61.541 |
| Installation | CLIP/SM quick fixing |
