Surface mounted downlight, Nimbus Module Q 36 TT 24V
Item code: X83367320
Item code copied!
Surface mounted downlight, Nimbus Module Q 36 TT 24V
Item code: X83367320
Item code copied!
€361.52
€583.10
set
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
Modul Q36 TT series square ceiling luminaire with TT connector made of translucent acrylic glass
Technical specifications:

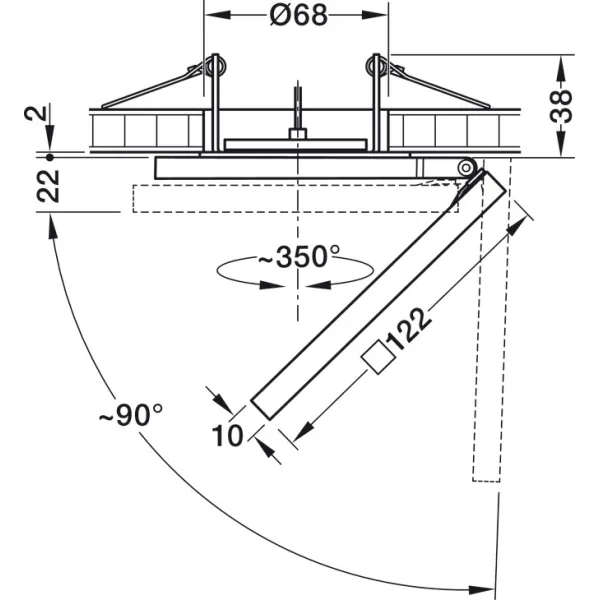

- Subtle design, luminaire thickness only 10 mm
- TT – “Tilt and Turn” connector allows tilting and rotating the luminaire in the desired direction
- Ideal for illuminating wall-mounted objects
- Luminaire tiltable up to ~90° and rotatable up to ~350°
- Due to unique edge lighting characteristics, Modul Q is suitable for effective large-area illumination
- 100% light distribution
- CRI > 90
- IP20
- Light temperature:
- Very warm white light 2700 K
- Warm white light 3000 K
- Natural white light 4000 K
- 24 V system

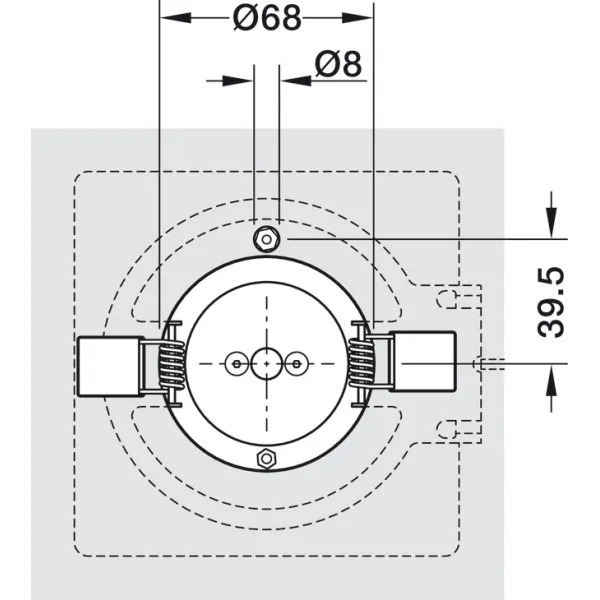

Mounting – recessed:
- Fixing ring secured with spring clips, luminaire attached to the ring with magnetic holders
(drill hole diameter 68 mm)
Perfect for suspended ceilings
Converter A-HCONV24, switches and other accessories sold separately
All luminaires are compatible with Hafele Loox5 24V system accessories
More detailed information about the luminaire is available on the manufacturer's website:
Set includes:
- Luminaire with recessed mounting and 200 mm cable with Loox5 connector
- Metal mounting ring
Data sheet
| Brand | Häfele |
|---|---|
| Power, W/piece | 6.5 |
| Length, mm | 122 |
| Degree of protection (IP) | 20 |
| Width, mm | 122 |
| Dimmable | Yes |
| Thickness, mm | 20+40 |
| Colour temperature, K | 4000 |
| Light colour | natural white |
| Luminous flux, lm | 750 |
| Vendor item no. | 833.67.320 |
