Sliding door fitting, Slido D-Line11 50I, set without running track
Item code: D-HSD50I/2S
Item code copied!
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track
Sliding door fitting, Slido D-Line11 50I, set without running track

Sliding door fitting, Slido D-Line11 50I, set without running track

Item code: D-HSD50I/2S
Item code copied!
€149.96 €208.28
set (with VAT)
Item in stock.
Delivery Time: 1-3 days
Suspended sliding door systemTechnical specifications:Suspended sliding door system  With soft-close and pull-in mechanism on both sides  Designed for 1 or 2 doors  ...
Min. 1

Product variations

Load capacity, kg
Width, mm
Description

Suspended sliding door system

Technical specifications:

  • Suspended sliding door system
  • With soft-close and pull-in mechanism on both sides
  • Designed for 1 or 2 doors
  • Door panel weight: up to 50 / 80 / 120 kg

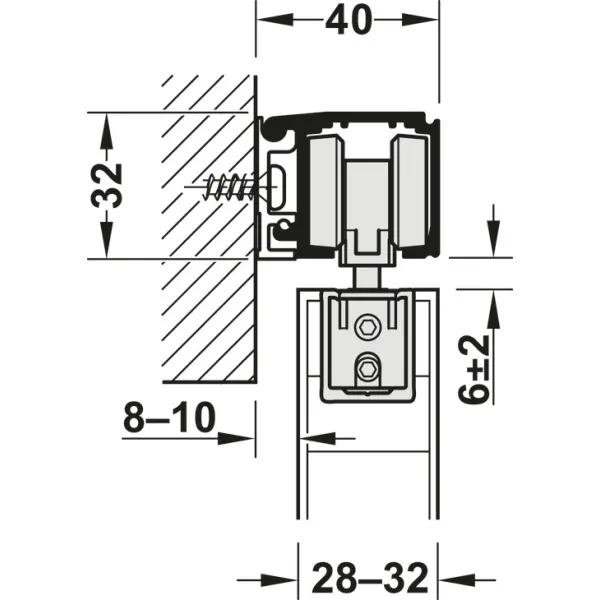

  • Top mounting to ceiling or side mounting to wall using a profile bracket (top runner is screw-fixed)
  • Top profile can be recessed into the ceiling using an additional mounting profile
  • Rollers are recessed into the panel
  • Adjustable door height: ±3 mm
  • Recommended door thickness: min. 28 mm (depending on mounting method)
  • Recommended door width:
    • 50–80 kg: from 744 mm
    • 120 kg: from 868 mm
  • One set is for one door; for two doors, order two sets

Available separately:
  • Top screw-fixed profile D-HSD/PV...
  • Or top profile and mounting profile set POCKET DOOR X940432...
Recommended accessories:
  • Bottom profile D-HSD/PA... (recessed)

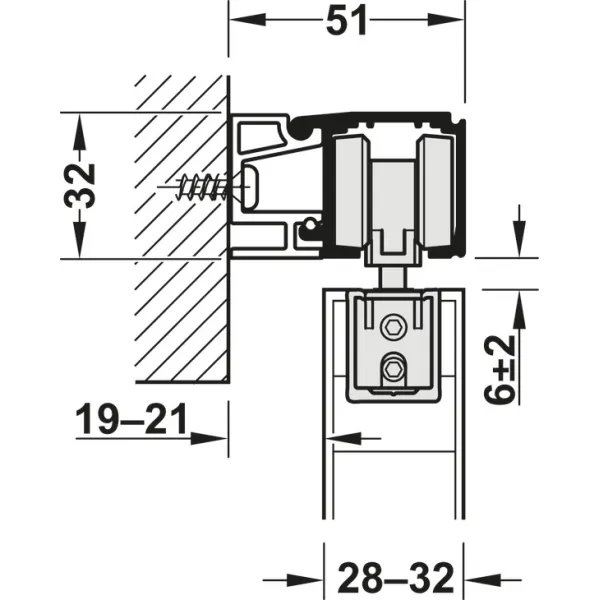

  • Bracket D-HSD/PV/L for top runner mounting to wall

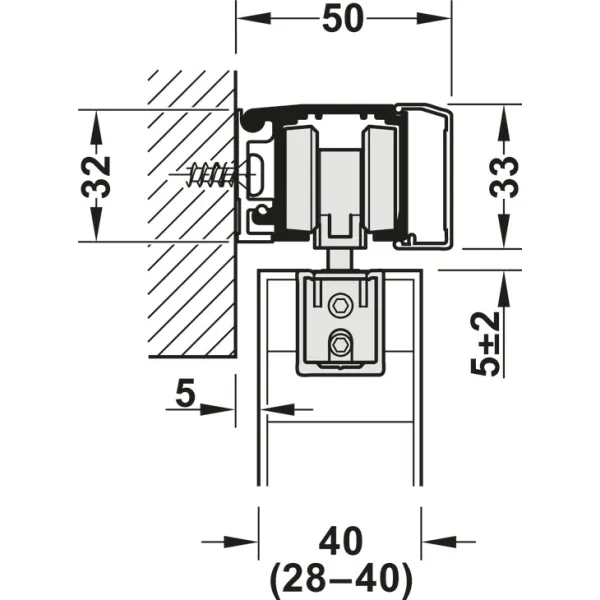

  • Fixing D-HSD/PV/U1 for decorative panel to cover top profile
  • Parallel door coupling mechanism

Product Details

Data sheet

BrandHäfele
Load capacity, kg 50
Width, mm >744
Vendor item no. 940.44.007

Product photos are intended for illustrative purposes only and are examples. The video links included in the product description are for informational purposes only; therefore, the information presented in them may differ from the actual product. Original product colors, inscriptions, parameters, measurements, sizes, functions, and/or other product features may appear differently in reality due to their visual characteristics, so please rely on the product specifications provided in the product description.
