Stay flap fitting, Häfele Maxi, individual fitting

Name: Stay flap fitting, Häfele Maxi, individual fitting
Brand: Häfele
SKU: M-MAXI/ANI-1
Price: 20.71 EUR
Availability: InStock

Item code: M-MAXI/ANI-1

€20.71 €27.99

pcs (with VAT)

Item in stock.

Delivery Time: 1-3 days

Stay flap fitting MAXI A. Technical specifications:Recommended for doors weighing 1–27 kg For doors 600 mm or wider, 2 mechanisms must be installed 75°/90°/110° opening...

Min. 1

pcs

favorite_border

Product variations

Load capacity, kg

Description
Product Details

Description

Stay flap fitting MAXI A.

Technical specifications:

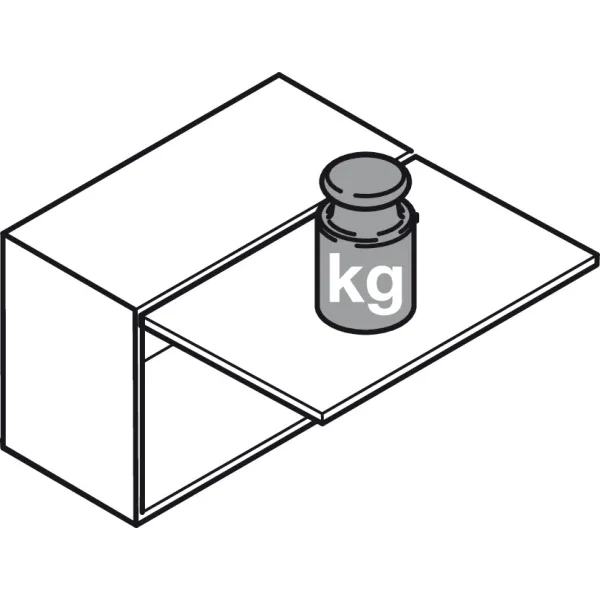

Recommended for doors weighing 1–27 kg
For doors 600 mm or wider, 2 mechanisms must be installed
75°/90°/110° opening angle depending on mounting method

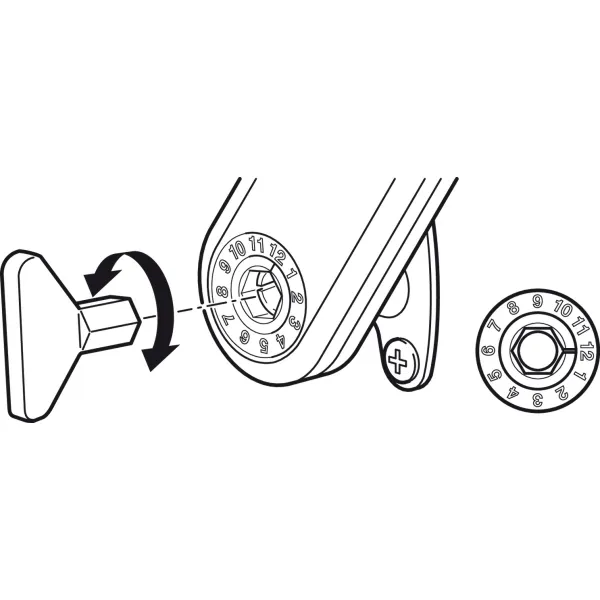

Lifting force adjustable with hex key SW4

Sold separately:

Mounting brackets for cabinet M-MAXI/1
Mounting brackets for wooden, aluminium profile or adapter for glass doors
M-MAXI mechanism selection tables and mounting diagrams

Click the link and select the required page

Mounting diagrams available at the link above:

p. 5.225 – doors with handles
p. 5.226 – extra heavy doors with handles
p. 5.227 – handleless doors with Maxi-Touch function, manually lifted and stopped at any height
p. 5.228 – handleless doors with Maxi-Touch function, fully automatic opening

Tables indicate the lifting weight for 1 MAXI mechanism

For doors wider than 600 mm, 2 lighter mechanisms are selected, each lifting half of the door’s weight

IMPORTANT: Mounting diagrams vary depending on the door opening angle and version!

Additionally available:

Maxi Touch function – for handleless doors opened by pressing
Adapter for catch T-699/1
Push catch T-699/2
Strike plate for catch T-699/3
Soft closing mechanism M-MAXI/3

Product Details

Data sheet

Brand	Häfele

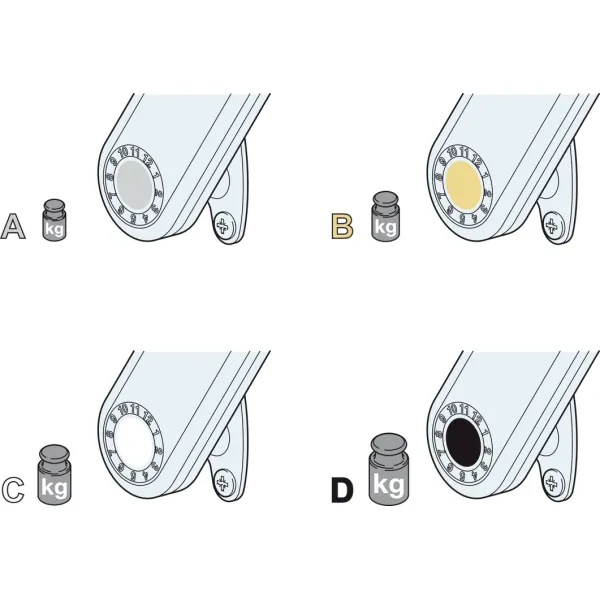

Load capacity, kg	0.7-7.1
Supplied with	1 Flap stay
Material	zinc alloy
External module height, mm	300-1000
Colour	nickel
Vendor item no.	373.69.902
