Item code: X40830591
Item code copied!
€1,025.35 €1,553.56
set (with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
System for hinged and retractable external (VF) or internal (IF) panel doors Technical specifications:The system operates quietly and smoothly — once pushed, the door automatically...
Min. 1
favorite_border

Product variations

Height, mm
Load capacity, kg
Width, mm
Description

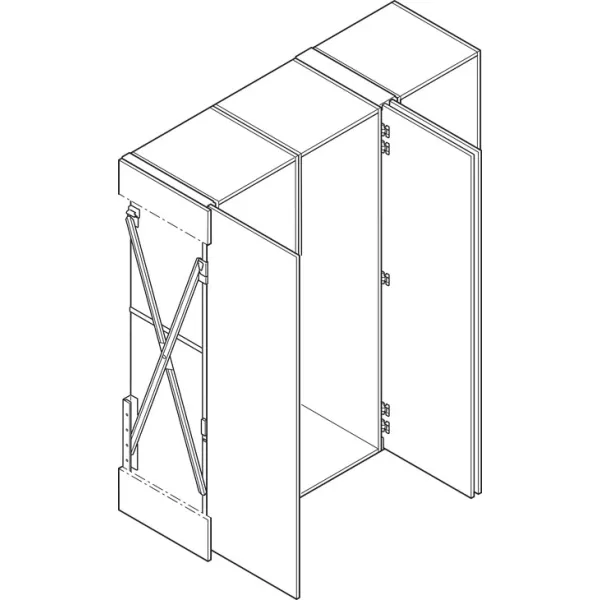

System for hinged and retractable external (VF) or internal (IF) panel doors

Technical specifications:
  • The system operates quietly and smoothly — once pushed, the door automatically slides into the pocket
  • Equipped with soft-close mechanism
  • Universal system — suitable for left or right-side installation
  • One set per door segment
  • LGA-certified product
  • Model: door segment weight / height / width:
    • 25: 10–25 kg / 1250–1850 mm / 300–750 mm
    • 30: 15–30 kg / 1851–2300 mm / 300–900 mm
    • 40: 20–40 kg / 1851–2500 mm / 300–900 mm
    • 50: 25–50 kg / 2301–2850 mm / 300–900 mm

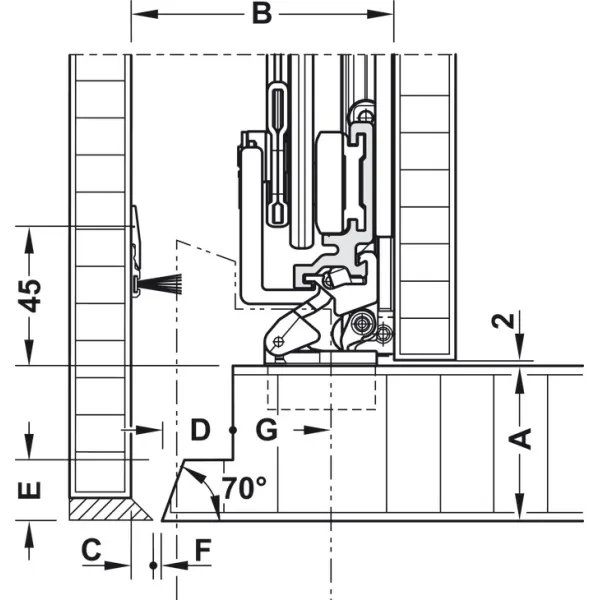

  • Door thickness: from 19 to 30 mm; with grooving (D) — up to 50 mm

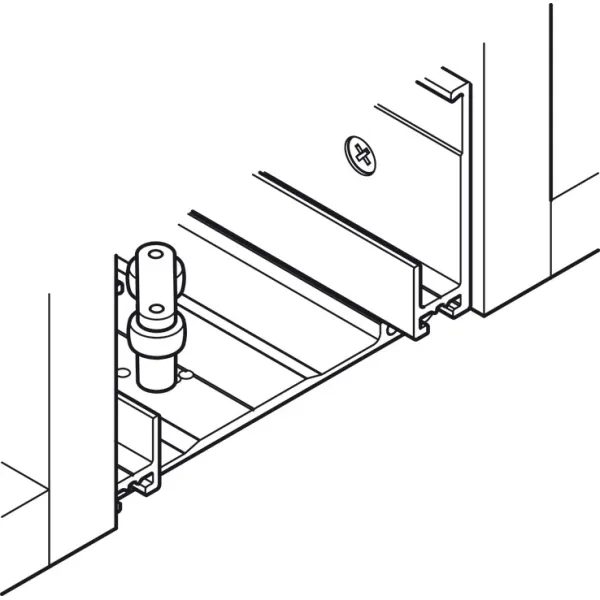

Accessories to be ordered together (p.10.213) depend on the mounting type:

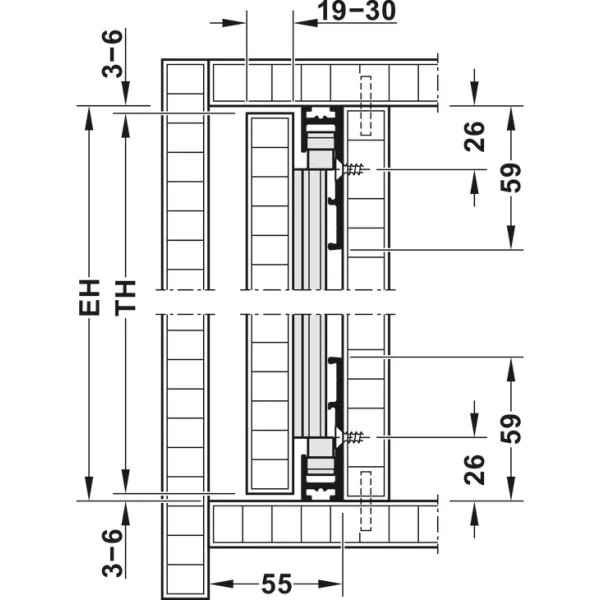

  • Between two cabinet bodies for external fronts (p.10.209–10.210)
  • Between two cabinet bodies for internal fronts (p.10.211)

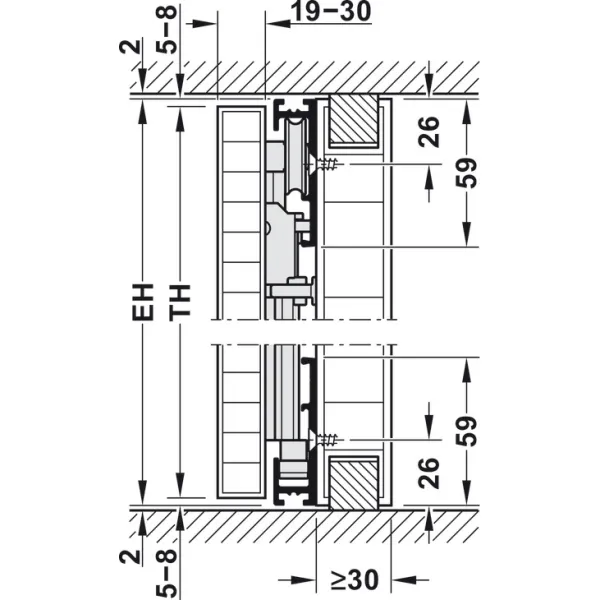

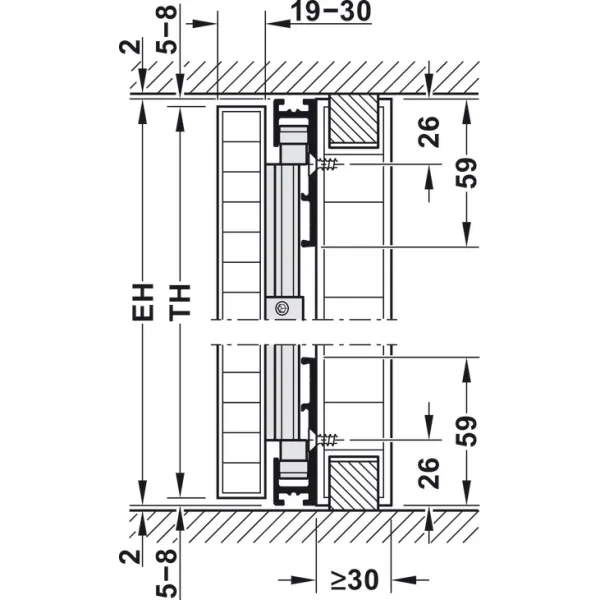

  • Between wall and cabinet body (for external and internal fronts) (p.10.212)
Pocket internal width:

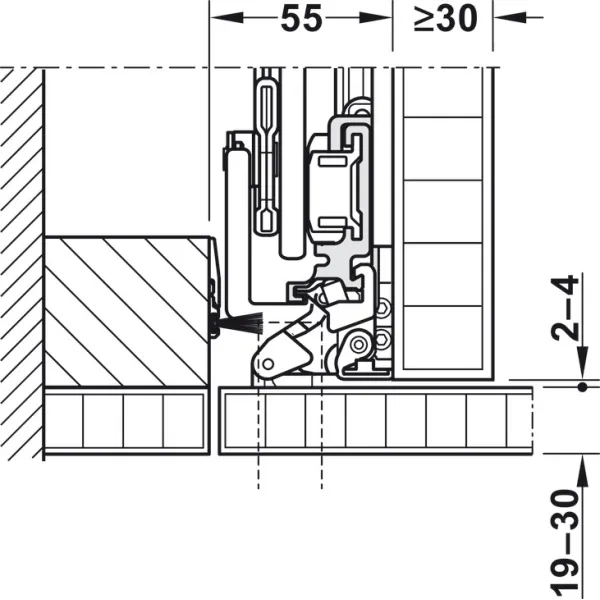

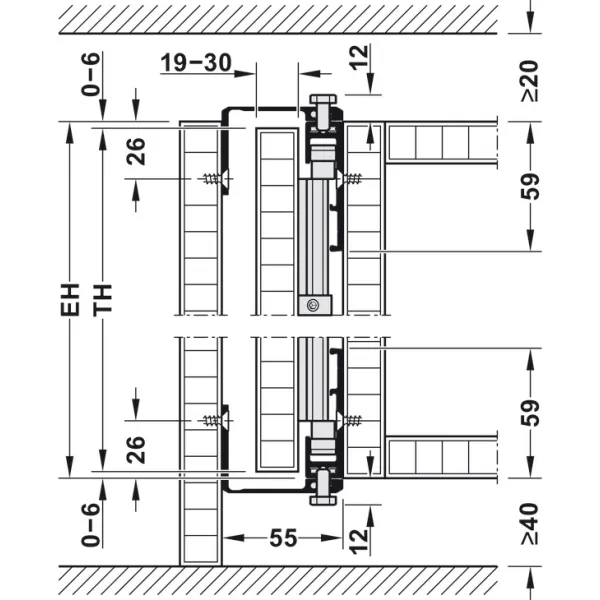

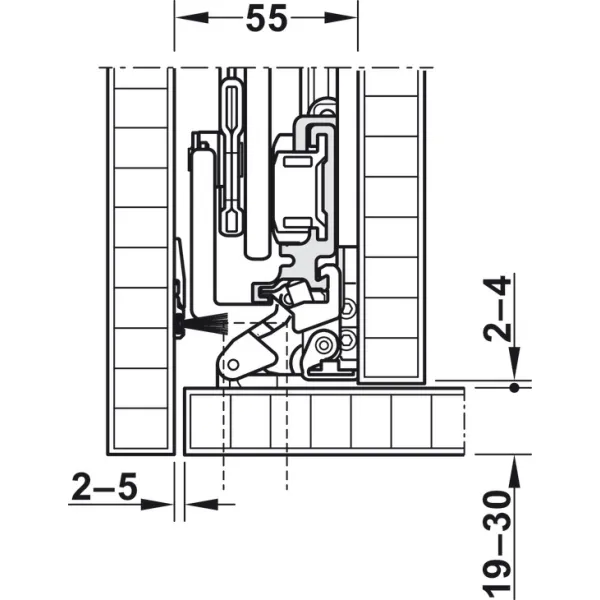

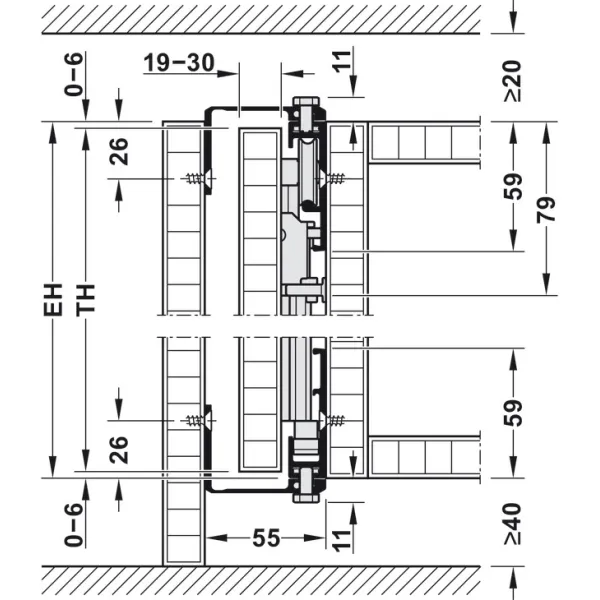

  • For one door segment: 55 mm

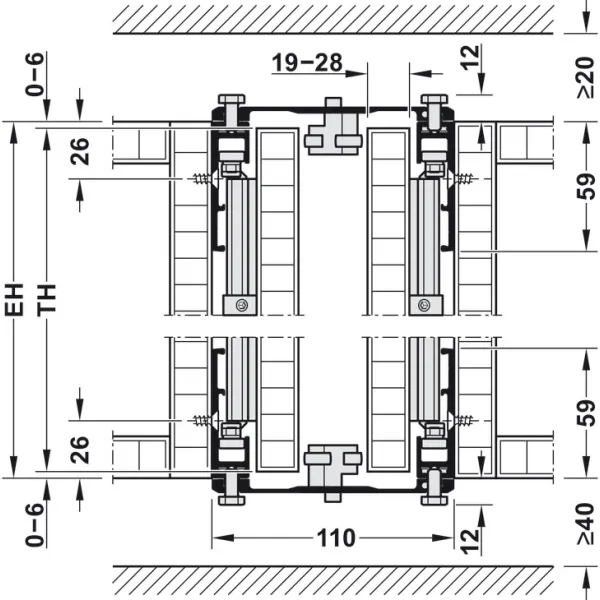

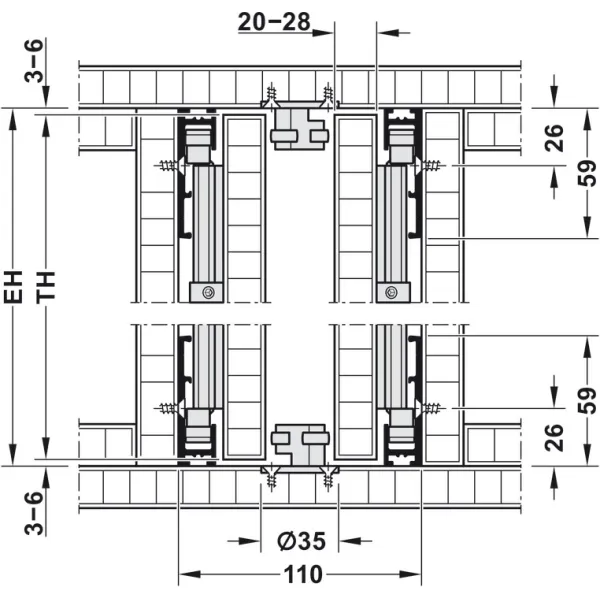

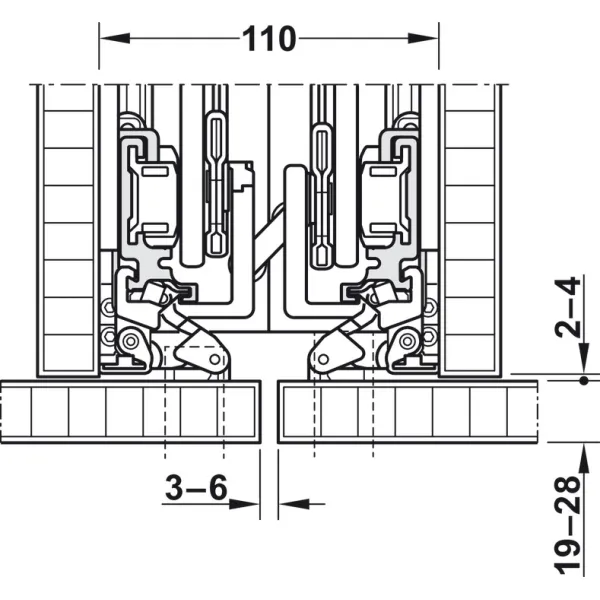

  • For two door segments: 110 mm
Convenient front-side adjustment

Installation Hawa Concepta 40/50 (video)
Product Details

Data sheet

BrandHäfele
Height, mm 1851-2300
Load capacity, kg 15-30
Width, mm 300-900
Vendor item no. 408.30.591
