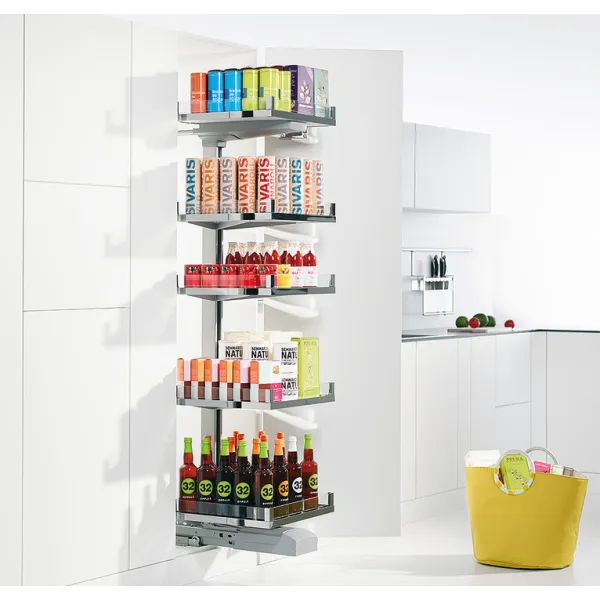

Extension fitting with shelves, for larder unit internal pull-out
Item code: V-CONVOY-P1500R
Item code copied!
Extension fitting with shelves, for larder unit internal pull-out
Item code: V-CONVOY-P1500R
Item code copied!
€1,043.62
€1,581.24
set
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
Pull-out utility cabinet with soft closing function
Technical specifications:
- Fully extends out of the cabinet when doors are opened
- Stored items can be conveniently accessed from three sides
- Robust frame supports high load up to 100 kg (up to 20 kg per shelf)
- Integrated soft closing mechanism
- Easy basket height adjustment
- Basket bottoms with non-slip coating and adjustable-height glass uprights
Material:
- Base frame brackets slide mechanism and shelf frames – steel
- Basket bottoms – MDF, uprights – glass
*Note: the dimension table indicates external cabinet module width and internal height and depth
Sold separately:
- Hinges with soft closing mechanism opening angle ≥150°
Additionally available:
- Extra baskets with glass uprights X54970226
Set includes:
- Base frame – 1 pc
- Slide mechanism – 1 pc
- Front brackets – 2 pcs
- Top basket with glass uprights and integrated top slide – 1 pc
- Baskets with glass uprights for adjustable height:
- for 1130 mm high cabinet – 3 pcs
- for 1530 and 1730 mm high cabinets – 4 pcs
Data sheet
| Brand | Häfele |
|---|---|
| Supplied with | 1 base profile 1,130 mm, 1 extension fitting, 1 support bracket, 1 top runner with shelf with glass height extension side panels, 3 shelves, 2 front brackets (top and bottom), 1 set of installation instructions |
| Material | steel |
| Side | right |
| External module width, mm | 600 |
| External module depth, mm | ≥500 |
| External module height, mm | 1500-1599 |
| Colour | chrome/white |
| Vendor item no. | 549.72.066 |
