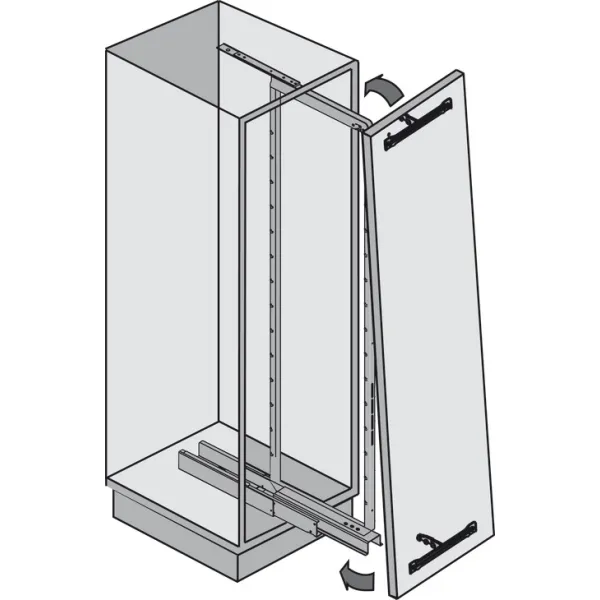

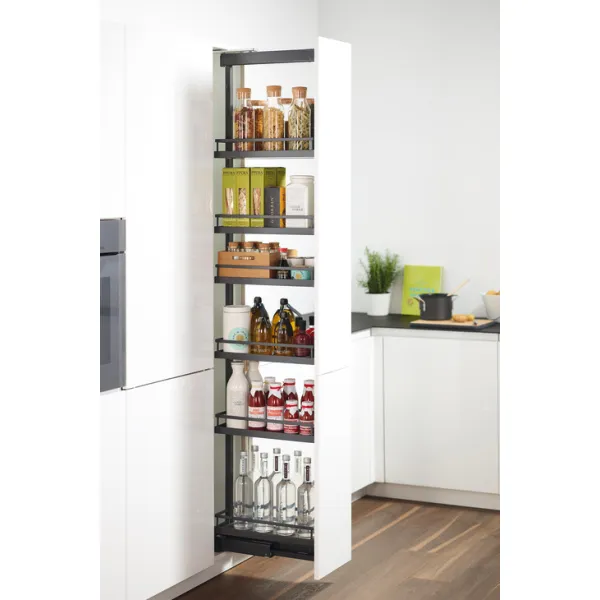

Larder unit pull-out, Kesseböhmer Dispensa
Item code: V-DISP30/1900A
Item code copied!
Larder unit pull-out, Kesseböhmer Dispensa
Item code: V-DISP30/1900A
Item code copied!
€373.57
€478.93
set
(with VAT)
Item is available for special order. Place your order as usual and we will contact you to confirm the shipping date.
Delivery Time: 7-15 days
Pull-out utility cabinet with soft closing function
Technical specifications:
- Fully extends out of cabinet
- Robust frame supports high load up to 100 kg
- Integrated soft closing mechanism

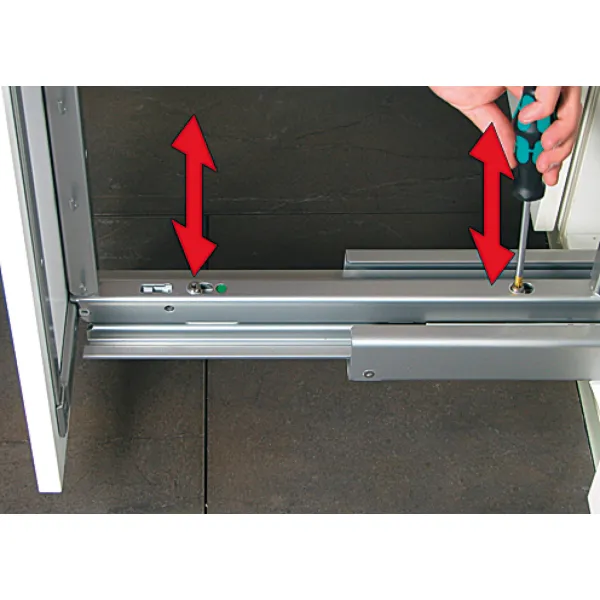

- Easy basket height adjustment

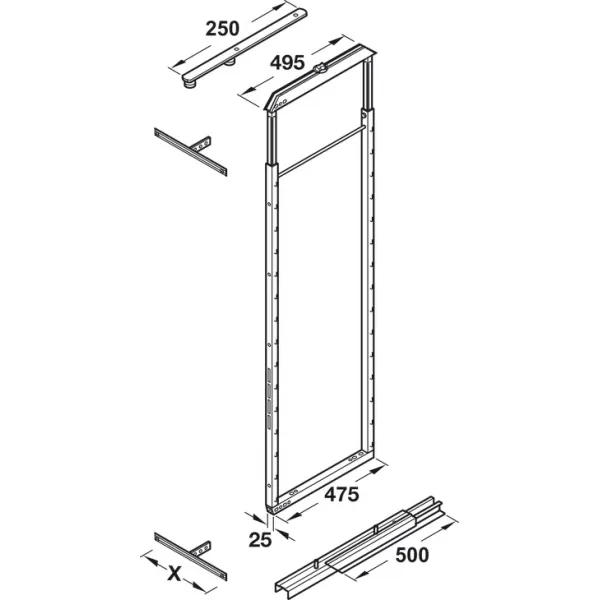

*Note: the dimension table indicates external cabinet module width and internal height and depth
DISPENSA VSS-x installation (PDF)
Sold separately:
- Baskets V-DISP/K
Recommended quantity of baskets to order:
- 4–6 pcs for 1200–1600 mm high frame
- 6–8 pcs for 1600–2000 mm high frame
- 7–9 pcs for 1900–2300 mm high frame
Additionally available:
- Electric opening mechanism TouchControl M-HTOUCH
Set includes:
- Frame with integrated soft closing mechanism
- Bottom slide with integrated soft closing mechanism
- Top slide
- Front mounting brackets
Data sheet
| Brand | Häfele |
|---|---|
| Supplied with | 1 hanging frame with integrated soft closing mechanism, 1 bottom runner with integrated soft closing mechanism, 1 top runner, 1 set of front brackets, 1 set of installation instructions |
| Material | steel |
| External module width, mm | 300 |
| External module depth, mm | ≥500 |
| External module height, mm | 1900-2300 |
| Colour | anthracite |
| Vendor item no. | 546.59.731 |
