Lid stay/flap stay, Häfele Duo standard, individual fitting

Name: Lid stay/flap stay, Häfele Duo standard, individual fitting
Brand: Häfele
SKU: M-DUO/SNI-1
Price: 6.27 EUR
Availability: InStock

Item code: M-DUO/SNI-1

€6.27 €8.47

pcs (with VAT)

Item in stock.

Delivery Time: 1-3 days

Universal mechanism for lifting or lowering cabinet doors Technical specifications: Recommended for doors with a height of 200–500 mm: When door weight ...

Min. 1

pcs

favorite_border

Product variations

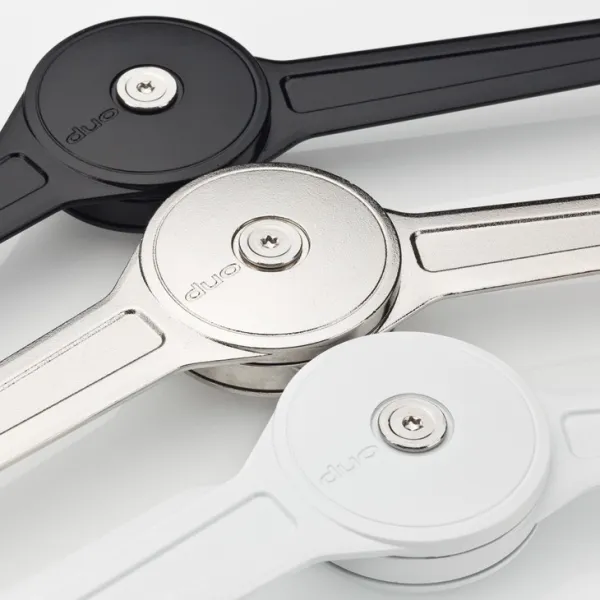

Colour

Description
Product Details

Description

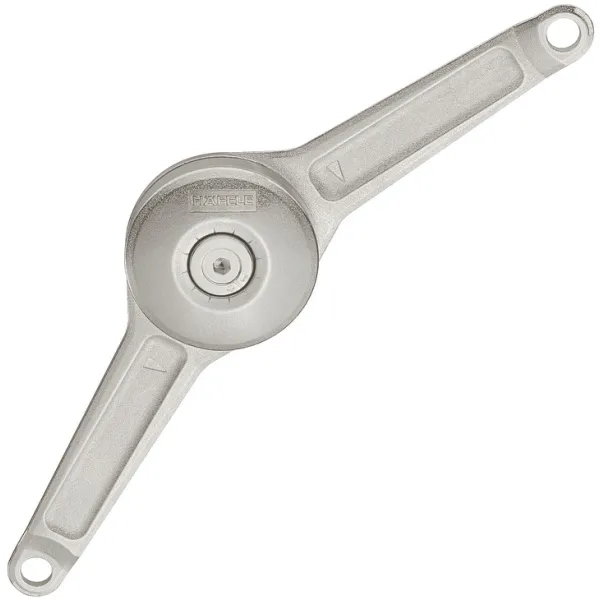

Universal mechanism for lifting or lowering cabinet doors

Technical specifications:

Recommended for doors with a height of 200–500 mm:

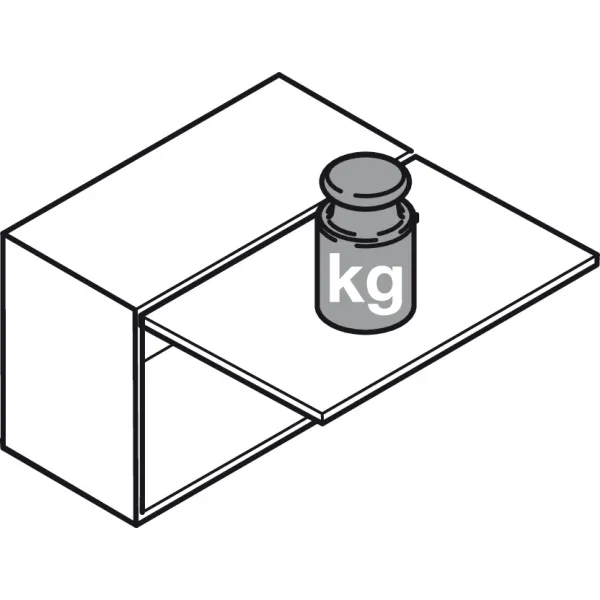

- When door weight is 2–9 kg, use 1 mechanism
- When door weight is 5–15 kg, use 2 mechanisms

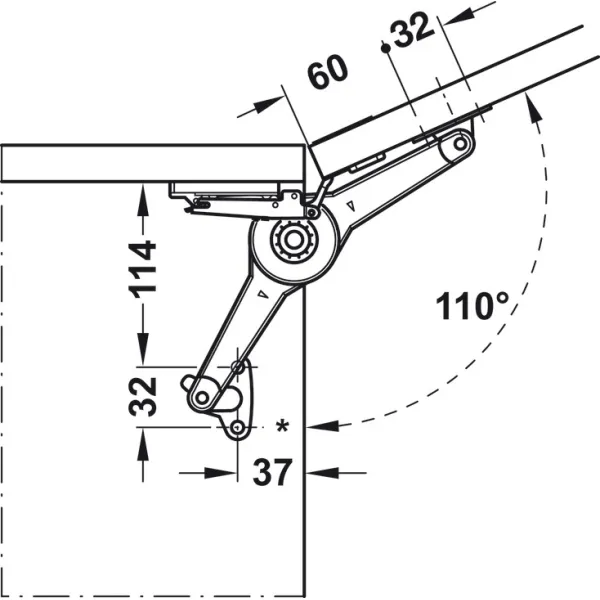

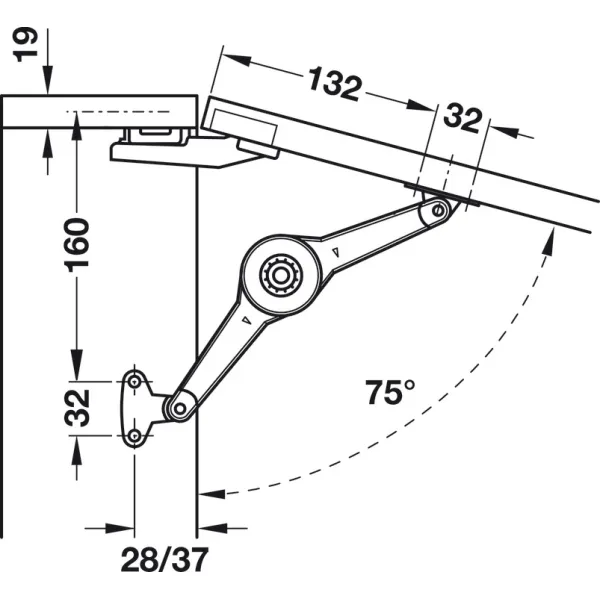

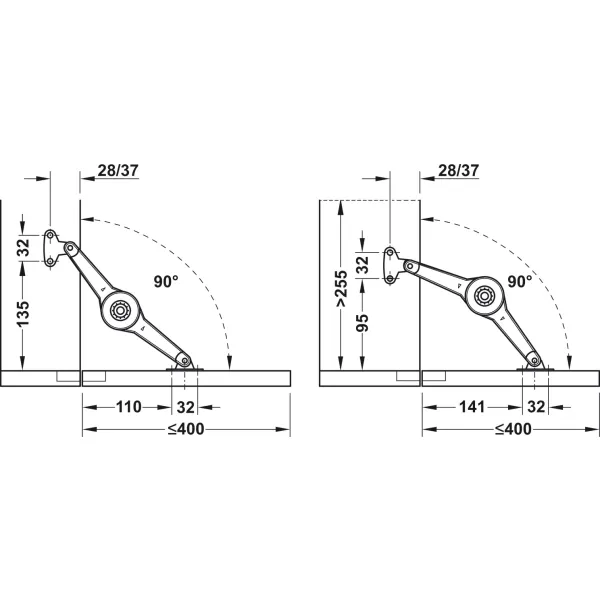

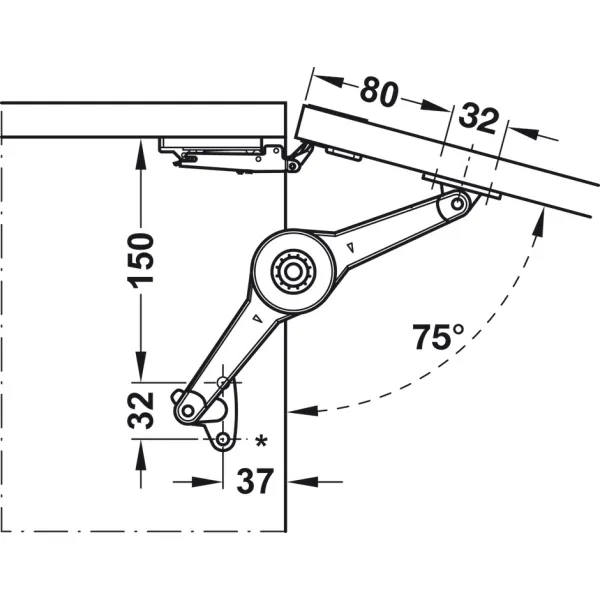

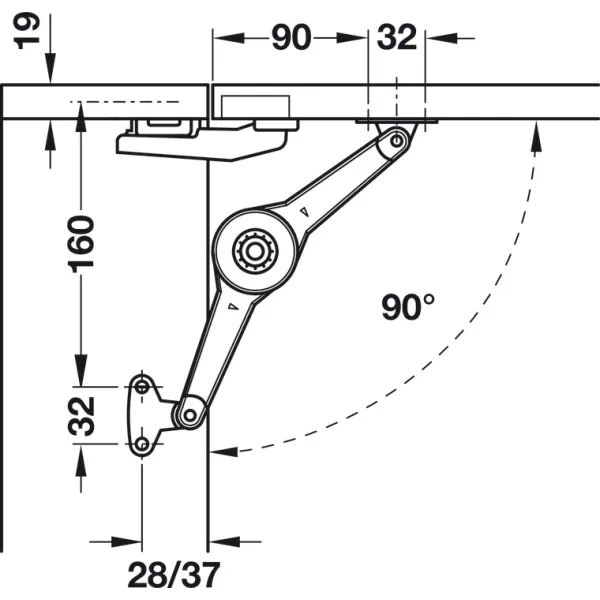

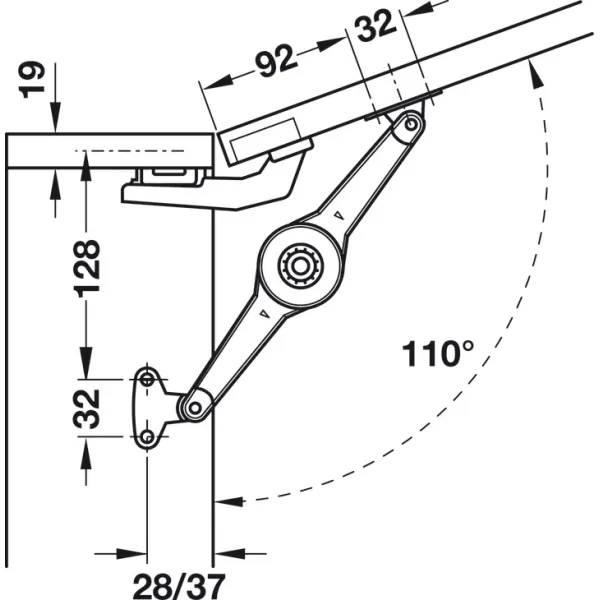

75°/90°/110° opening angle depending on mounting method
For downward-opening doors, a magnet is recommended for secure closure

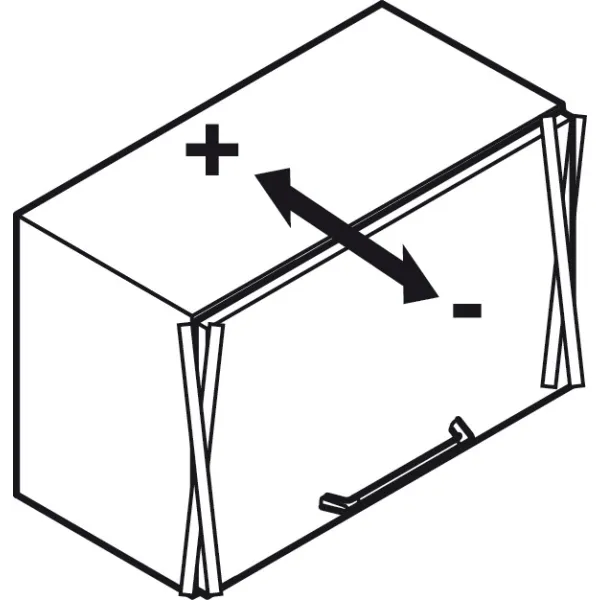

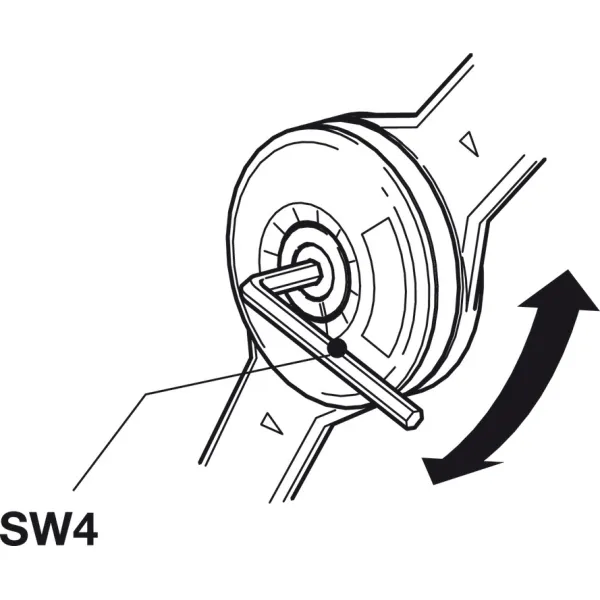

Lifting/lowering force adjustable via hex key SW4

Sold separately:

Mounting brackets for cabinet body M-DUO/SNI-2
Mounting brackets for wooden doors M-DUO-MAXI/1NI, brackets for aluminium profiles or adapter for glass doors

DUO STANDART selection tables and mounting diagrams

Click the link and select the required page

Mounting diagrams available in catalogue pages:

p. 5.240 – upward- and downward-opening doors with handles
p. 5.241 – handleless upward-opening doors with Push function, manually lifted and held at any height

Tables indicate lifting weight for 1 and 2 mechanisms

For doors wider than 600 mm, use 2 mechanisms

IMPORTANT: Mounting diagrams vary based on door opening angle and version!

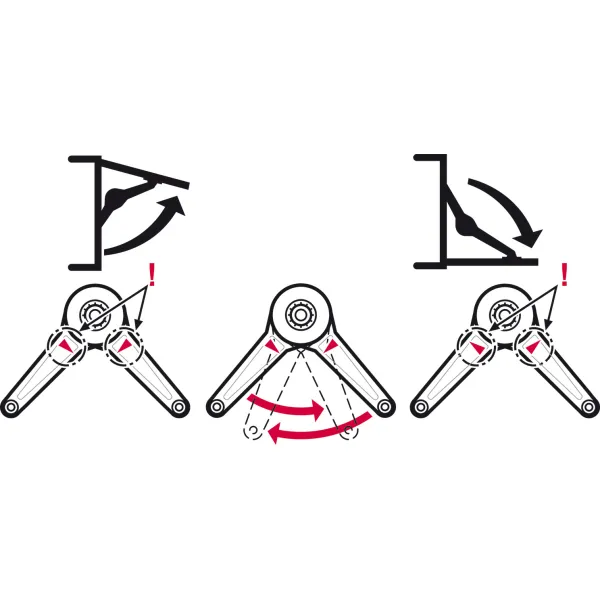

"Locking function" – door lifts manually and can be held at any height

"Braking function" – door locks only when fully opened, with soft-close feature

Magnets with plates for securing downward-opening doors are sold separately

Product Details

Data sheet

Brand	Häfele
Supplied with	1 lid stay, 1 set of installation instructions
Material	zinc alloy
External module height, mm	200-500
Colour	nickel
Vendor item no.	373.66.500
