Sliding door fitting, Häfele Slido F-Line21 20C, set

Name: Sliding door fitting, Häfele Slido F-Line21 20C, set
Brand: Häfele
SKU: D-HSF21/20C/2S/2
Price: 127.12 EUR
Availability: InStock

Item code: D-HSF21/20C/2S/2

€127.12 €174.13

set (with VAT)

Item in stock.

Delivery Time: 1-3 days

Suspended internal door system with soft closing and pull-in mechanism in both directions Technical specifications:Door thickness 16–19 mm Recommended weight per door ...

Min. 1

set

favorite_border

Product variations

Load capacity, kg

Description
Product Details

Description

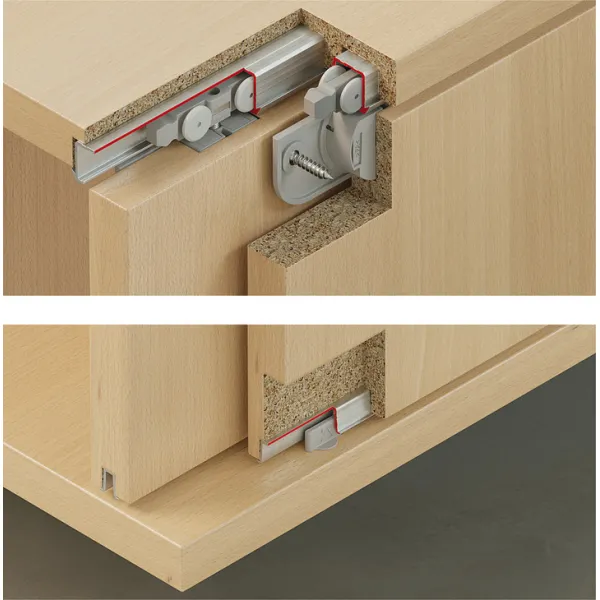

Suspended internal door system with soft closing and pull-in mechanism in both directions

Technical specifications:

Door thickness 16–19 mm
Recommended weight per door segment: up to 20 / 40 kg
Door segment width:
for 20 kg system – min. 530 mm
for 40 kg system – min. 550 mm
Anti-derailment protection
Height adjustment ±2 mm
Minimal door overlap
Top profile: recessed
Bottom profile: recessed
One set – for 2 door segments

Mounting diagram (PDF)

Sold separately:

Top profile D-HSF21/PV...
Bottom profile D-HSF21/PA...

Product Details

Data sheet

Brand	Häfele
Load capacity, kg	20
Vendor item no.	402.33.020
