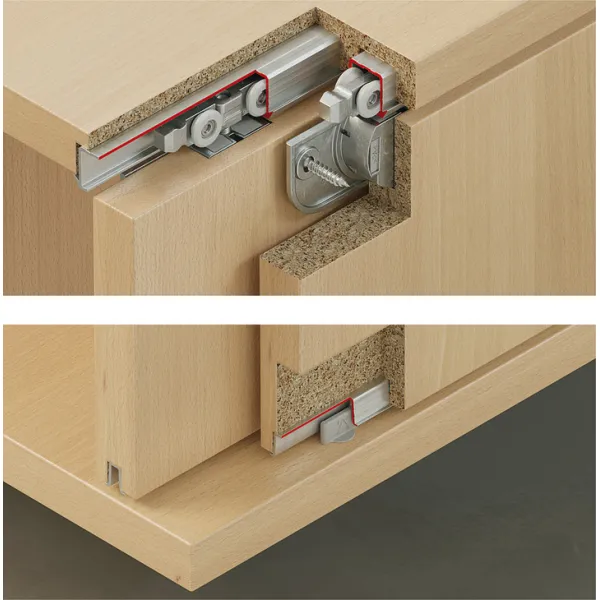

Sliding door fitting, Häfele Slido F-Line21 40C, set
Suspended internal door system with soft closing and pull-in mechanism in both directions
Technical specifications:
- Door thickness 16–19 mm
- Recommended door segment weight: up to 20 / 40 kg
- Door segment width:
- for 20 kg system – min. 530 mm
- for 40 kg system – min. 550 mm
- Anti-derailment protection
- Height adjustment ±2 mm
- Minimal door overlap
- Top profile: recessed
- Bottom profile: recessed
- One set – for 1 door segment
- Top profile D-HSF21/PV...
- Bottom profile D-HSF21/PA...
Data sheet
| Brand | Häfele |
|---|---|
| Load capacity, kg | 40 |
| Vendor item no. | 402.33.025 |
